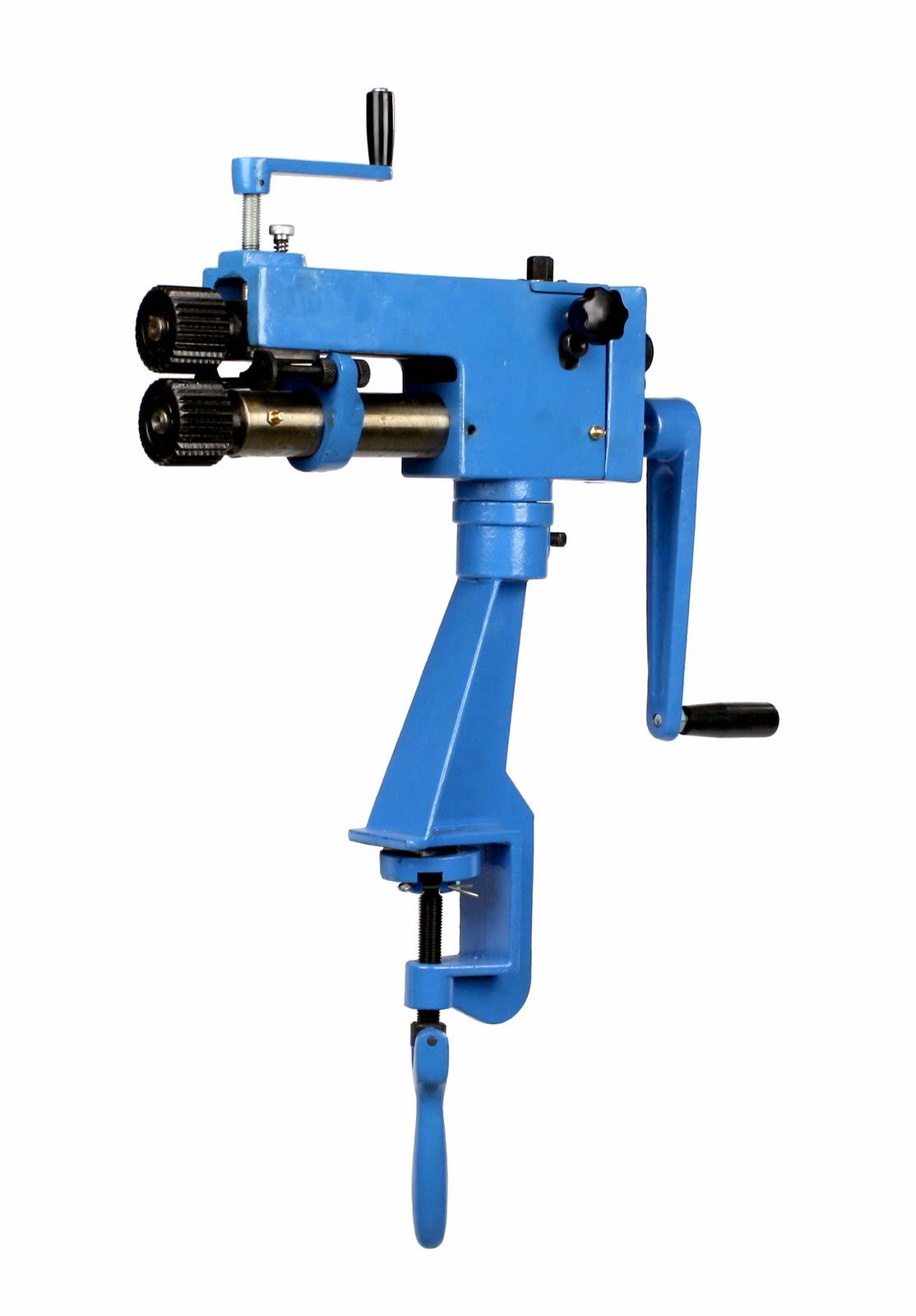

Erie Tools Rotary Machine Bead Roller Sheet Metal Forming Steel Bender HVAC Fabrication with 22 Gauge Capacity HJV66_M0185

Product details:

This rotary forming machine offers a variety of shapes and is capable of forming sheet metal for a variety of uses including crimping and beading. 7 deep throat and long shaft permit easy handling of wide rolls. It is hand operated and will form sheet metal up to 22 Gauge thickness in mild steel. The machine is constructed of cast iron and steel ensuring minimum deflection of the workpiece during forming operations. Comes with a (6) six die set allowing large and small turning, burring, wiring, ogee beading & crimping. Maximum Thickness: 22 Gauge (.030) mild steel - Throat Depth: 7Material Stop Range: 0-7Max. Thickness Mounting Surface: 2Includes 6 sets of rolls/dies (Turning rolls, Wiring rolls, Crimping rolls, Burring rolls, Single bead rolls, Ogee bead rolls) Turning die set A: .118Turning die set B: .157Burring die set: .236Crimping die set: .236Wiring die set - Ogee bead die set Performs burring, edging, elbowing, flanging, flattening and turning - Fine adjustment knobs for precision rolling - Operation is smooth, fast and precise - Table mount with clamp - Heavy duty cast iron and machined steel construction - Over All Dimension: 20 1/2L x 5W x 32 1/2H (Including Base Mount)
