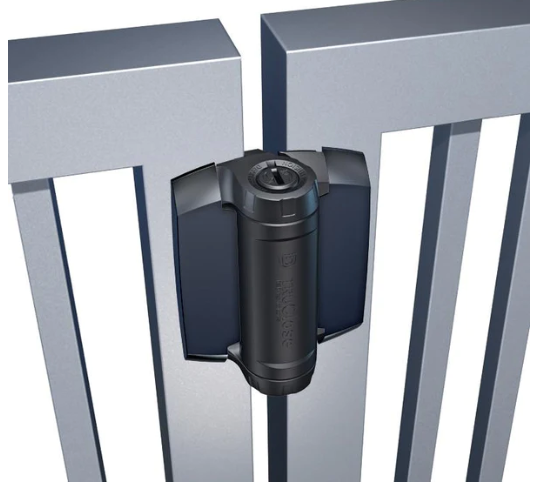

Truclose Heavy Duty  Gate Hinges

Self-Closing Hinges for High-Traffic & Pool Gates

• Install a hinge safety cap on pool and safety gates (optional)
• Quick and simple installation
• Self-closing gates up to 154 pounds (70kg)
• Simple, adjustable closing tension;
• Won't rust, bind, sag, or discolor (from either end of hinge)
• UV-stabilized and self-lubricating durability
• Available decorative trim covers (no visible fasteners)
• Optional 1 or 2 side-fixing legs for faster alignment and enhanced strength

Details

TruClose Safety Gate Hinges are the most reliable child safety gate hinges in the world. These polymer hinges were designed to eliminate all of the issues associated with traditional gate hinges, including corrosion, binding, sagging, and staining.

The TruClose HEAVY DUTY series of hinges is ideal for heavy or high-traffic gates up to 70kg in weight. The hinges are constructed with engineering-grade plastics and a stainless-steel closing spring to last a lifetime.

TruClose hinges are suitable for kid safety gates surrounding swimming pools*, daycare facilities, schools, houses, playgrounds, and hotels/motels due to its high level of safety and dependability. TruClose hinges are simple to install and may be easily adjusted for self-closing speed.

They are equipped with standard Black trim covers, so there are no visible fasteners. Polished and chrome metallic trim covers are also offered as options. TruClose HEAVY DUTY hinges are also available with side-fixing legs (to facilitate quick installation and provide extra fixing strength), a MultiAdjust version with exceptional 3-way adjustment (vertical, horizontal, and tension adjustment), and a round-post variant for gates and fences (such as on tennis court gates etc.).

Worldwide, D&D has sold millions of these prestigious TruClose Safety Gate Hinges. * When putting TruClose hinges on a swimming pool gate, check with your local council or safety authorities to guarantee compliance with any safety standards.

Specifications

GENERAL FORMATTING

This product guide specification is written according to the Construction Specifications Institute (CSI)

3-Part Format, including MasterFormat, SectionFormat, and PageFormat, as described in The Project Resource Manual – CSI Manual of Practice.

This Section must be carefully reviewed and edited by the Architect to meet the Project specific requirements and local building code. Coordinate this Section with other specification sections and the Drawings.

EDITING INSTRUCTIONS

Delete all “Specifier Notes” when editing this section.

Revise this Section by deleting, inserting, and revising text to meet Project specific requirements.

[TEXT] Indicates an option to be selected by specification writer. Select or delete option and brackets, and change text formatting to match adjacent text.

<TEXT> Indicates information to be completed by specification writer. Complete text or delete text box, delete brackets, and change text formatting to match adjacent text.

1” – 2” (25-50mm) Imperial and (Metric) numbering. Retain or delete either according to project requirements.

UNREGISTERED TRADEMARKS AND REGISTERED TRADEMARKS

Unregistered Trademark (™) and Registered Trademark (®) symbols are not used to identify products identified in this Section by Product Name. For proprietary rights, and use of Trademarks associated with specific products contact D&D Technologies.

FULL LENGTH AND SHORTFORM SECTIONS AVAILABLE FROM D&D TECHNOLOGIES

Section 087110 [323110] Gate Latches and Locks

Section 087120 [323120] Gate Hinges

Section 087130 [323130] Commercial Hinges and Closers

Section 087132 [323132] Sliding Gate Hardware

Section 087140 [323140] Gate Accessories

Specifier Note: Select Section Numbers from options below. Change footer to match.

SECTION 087120 [323120] GATE HINGES (Full Length Version)

• GENERAL
  • SUMMARY
    1. Section Includes: D&D Technologies Gate Hinges.
       1. TruClose Products:
          1. TruClose Series 3 Regular Hinges.
          2. TruClose Regular Mini MultiAdjust (Square and Round Post options available).
          3. TruClose Regular DecoMold.
          4. TruClose Series 3 Heavy Duty Hinges.
          5. TruClose Series 3 Heavy Duty Round
          6. TruClose Heavy Duty MultiAdjust.

2. KwikFit Products:
   1. KwikFit Aluminum.
   2. KwikFit Series 3 Polymer (Self-Closing and Plain Pivoting).

1. Related Sections:

Specifier Note: Retain subparagraphs, select options, and complete related section information for requirements Contractor might expect to find in this Section but are specified in other Sections.

1. Division 08 [32] Section “Gate Latches and Locks” for gate latches and locks.
2. Division 08 [32] Section “Gate Hinges” for gate hinges.
3. Division 08 [32] Section “Commercial Hinges and Closers” for gate and door hinges.
4. Division 08 [32] Section “Sliding Gate and Door Hardware” for gates and doors.
5. Division 08 [32] Section “Gate Accessories” for gate accessories.
6. Division <##> Section "<Name>" for <Insert description of related requirements>.

• SUBMITTALS
  1. Product Data: Submit product data for each type of product used on project with full model number.
  2. Hardware Schedule:
     1. Submit hardware schedule detailing hardware to be provided at each opening for coordination with gate frames, fence posts and related work.
     2. For load bearing hardware provide product information showing quantity and type of hardware recommended by manufacturer to safely carry weight of gate and other applied loads.
     3. For latching and locking devices, coordinate requirements with Owner, and indicate desired position of gate within fence line.

1. Installation Instructions: Submit manufacturer’s installation instruction for each hardware device. Mark installation instructions to indicate mounting heights for all operable hardware showing compliance with applicable codes requirements. For swimming pools and spas, consult the local Authority Having Jurisdiction.
2. Warranty: Submit copy of manufacturer’s warranty for each product.
3. Extra Materials: At project closeout provide installation and adjustment instructions, warranties and advisories, extra parts, accessories, and tools normally provided by manufacturer with installed hardware for maintenance and adjustment of installed hardware.
4. QUALITY ASSURANCE
5. D&D Technologies operates a fully accredited and internationally recognized ISO 9001-2015 Quality Assurance System, which governs the design and manufacture of all our products.
6. WARRANTY
7. Limited Lifetime Warranty (TruClose products and KwikFit Series 3 Polymer products only). Two Year Limited Warranty on KwikFit Aluminum.

• PRODUCTS
  • PRODUCTS
    1. Products: Subject to compliance with requirements, provide the following D&D Technologies gate hinge products. No substitutions.

Specifier Note: Select products from list below applicable to project.

1. TruClose Family of Products:
   1. General Description: TruClose is a combined gate closer and hinge in a convenient and simple to install and operate package. They have been designed to replace conventional gate hinges and closers.  The unique design of the TruClose products have adjustable tension to allow the gate to self-close. The TruClose is constructed from UV stabilized super-strong engineering polymers that won’t rust, bind, sag or stain to suit harsh outdoor climates. The TruClose comes in two forms: Heavy Duty and Regular Duty to suit various applications including residential gates and heavy gates with high traffic capacities with self-closing gate weights ranging from 55 lb to 154 lb (25kg to 70kg) per gate/pair.

2. General Features and Benefits:
   1. TruClose is a gate closer and hinge all-in-one.
   2. Externally mounted for quick and easy installation.
   3. Small footprints are unobtrusive.
   4. Internally housed stainless steel spring.
   5. Tension adjustable with up to 154 lb (70kg) self-closing capacity.
   6. Constructed from UV stabilized super-strong engineering polymers that won’t rust, bind, sag or stain.
   7. Designed to suit various gate materials, including metal, wood, vinyl and chainlink.
   8. No resistance if closed quickly in an emergency.
   9. No visible moving parts for a minimalist look.
   10. Fits left or right handed, unidirectional swing doors.

3. TruClose Series 3 Regular:
   1. Product Description:

TruClose Series 3 Regular is a combined gate closer and hinge for residential applications. The TruClose Series 3 Regular has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 66 lb (30kg). TruClose Series 3 Regular is available in black and white with various trim cover options. Meets AS1926-1 2012.

1. Features:
   • Self-closing weight capacity of up 66 lb (30kg).
   • Tension adjustable from both ends.
   • Available with (2 side fixing legs) and without side fixing legs.
   • Gate Frame/Post Shape: Square-to-Square.
   • Available in various trim cover options including gloss black, chrome, brushed and white for concealing the fasteners.
   • Safety caps available separately for safety applications, such as pool/child safety gates. Always confirm local fence / barrier regulations before installation.
   • Meets AS1926-1 2012 (certified by a NATA accredited laboratory).

 Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

4. TruClose Regular Mini MultiAdjust:
   1. Product Description:

TruClose Regular Mini MultiAdjust is a combined gate closer and hinge for residential applications. The TruClose Regular Mini MultiAdjust has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 55 lb (25kg). The unique design of the TruClose products allow two positional adjustments: horizontal and vertical to ensure perfect installation.

1. Features:
   • 3-way adjustment: Vertical, Horizontal and Tension.
   • Self-closing weight capacity of up 55 lb (25kg).
   • Horizontal and vertical adjustments to ensure perfect installation. Up to 3/4" (19mm)
   • Gate Frame/Post Shape: Square-to-Square or Round-to-Round (chainlink).
   • Fit gate gaps up to 2" (50mm).

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

5. TruClose Regular DecoMold:
   1. Product Description:

TruClose Regular DecoMold is a combined gate closer and T-hinge for residential wood gate applications. The TruClose Regular DecoMold has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 55 lb (25kg).

1. Features:
   • Ornamental styled T-hinge and closer for wooden gates.
   • Self-closing weight capacity of up 55 lb (25kg).
   • Tension adjustable.
   • Thicker, molded rib through the center of the T-hinge for added strength.
   • Gate Frame/Post Shape: Square-to-Square.

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

6. TruClose Series 3 Heavy Duty:
   1. Product Description:

TruClose Series 3 Heavy Duty is a combined gate closer and hinge for heavy gates with high traffic applications. The TruClose Series 3 Heavy Duty has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 154 lb (70kg). TruClose Series 3 Heavy Duty is available in black and white with various trim cover options. Meets AS1926-1 2012.

1. Features:
   • Self-closing weight capacity of up 154 lb (70kg).
   • Tension adjustable from both ends.
   • Available with (1 or 2 side fixing legs) and without side fixing legs.
   • Gate Frame/Post Shape: Square-to-Square.
   • Available in various trim cover options including gloss black, chrome, brushed and white for concealing the fasteners.
   • Safety caps available separately for safety applications, such as pool/child safety gates. Always confirm local fence / barrier regulations before installation.
   • Meets AS1926-1 2012 (certified by a NATA accredited laboratory).

1. Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.
2. TruClose Series 3 Heavy Duty Round:
3. Product Description:

TruClose Series 3 Heavy Duty Round is a combined gate closer and hinge for heavy gates with high traffic applications on chain links. The TruClose Series 3 Heavy Duty Round has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 154 lb (70kg).

1. Features:
   • Self-closing weight capacity of up 154 lb (70kg).
   • Tension adjustable from both ends.
   • Gate Frame/Post Shape: Round-to-Round (chain link)
   • Various round post adapters included. Refer to chart below on the recommended diameters.

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

7. TruClose Heavy Duty MultiAdjust:
   1. Product Description:

TruClose Heavy Duty MultiAdjust is a combined gate closer and hinge for heavy gates with high traffic applications. The TruClose Heavy Duty MultiAdjust has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 132 lb (60kg). The unique design of the TruClose products allow two positional adjustments: horizontal and vertical to ensure perfect installation.

1. Features:
   • 3-way adjustment: Vertical, Horizontal and Tension.
   • Self-closing weight capacity of up 132 lb (60kg).
   • Horizontal and vertical adjustments to ensure perfect installation. Up to 3/4" (19mm)
   • Gate Frame/Post Shape: Square-to-Square.

1. Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

1. KwikFit Family of Products.
   1. General Description: KwikFit is a combined gate closer and hinge in a convenient and simple to install and operate package, except for the KwikFit Series 3 Polymer Plain which is a plain pivoting hinge. They have been designed to replace conventional gate hinges and closers. The KwikFit comes in two versions: Aluminum and Series 3 Polymer to suit residential gate applications.

2. General Features and Benefits:
   1. KwikFit is a gate closer and hinge all-in-one, except for the KwikFit Series 3 Polymer Plain.
   2. Externally mounted for quick and easy installation.
   3. Small footprints are unobtrusive.
   4. Tension adjustable or fixed tension with up to 44 lb (20kg) self-closing capacity.
   5. Designed to suit various gate materials, including metal, wood and vinyl.
   6. No resistance if closed quickly in an emergency.
   7. Fits left or right handed, unidirectional swing doors.

3. KwikFit Aluminum:
   1. Product Description:

KwikFit Aluminum is a combined gate closer and hinge for residential applications. The KwikFit Aluminum is constructed from aluminum with powder-coated to suit harsh outdoor climates and added UV resistance. The KwikFit Aluminum has adjustable tension to allow the gate to self-close with a self-closing weight capacity of up 44 lb (20kg). KwikFit Aluminum is available in black, bronze and white with various mounting options.

1. Features:
   • Traditionally styled 5-3/4” or 5-13/64” (146mm or 132mm) self-closing hinges.
   • Aluminum construction with powder coated finish.
   • Self-closing weight capacity of up 44 lb (20kg).
   • Tension adjustable from both ends.
   • Internally housed stainless steel spring.
   • Wall and post mount models available.
   • Low-friction polymer washer material.
   • Available in various color including black, bronze and white.

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=KwikFit%E2%84%A2 for free online videos and installation information.

4. KwikFit Series 3 Polymer:
   1. Product Description:

KwikFit Series 3 Polymer is a combined gate economical closer and hinge for residential applications, except for the KwikFit Series 3 Polymer Plain which is a plain pivoting hinge. The KwikFit Series 3 Polymer is constructed from UV stabilized super-strong engineering polymers that won’t rust, bind, sag or stain to suit harsh outdoor climates. The KwikFit Series 3 Polymer comes in two variations: Self-Closing and Plain Pivoting. The KwikFit Series 3 Polymer Self-Closing has fixed tension to allow the gate to self-close with a self-closing weight capacity of up 44 lb (20kg).

1. Features:
   • KwikFit Series 3 Polymer Self-Closing has fixed tension with a self-closing capacity of 44 lb (20kg).
   • Gate Frame/Post Shape: Square-to-Square.
   • Constructed from UV stabilized super-strong engineering polymers that won’t rust, bind, sag or stain to suit harsh outdoor climates.
   • 2 side fixing legs for additional strength.
   • 60⁰ ramp on both ends (anti-climbing feature).

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=KwikFit%E2%84%A2 for free online videos and installation information Features:

• EXECUTION
  • EXAMINATION
    1. Examine gate frames and fence posts, with Installer present, for compliance with requirements for gate hardware installation tolerances, assembly construction, and other conditions affecting performance.
    2. Proceed with installation only after unsatisfactory conditions have been corrected.
    3. PREPARATION
    4. Prepare gate frames and fence posts in accordance with manufacturer's installation instructions. Any existing gate hardware must be removed before installation. Apply the proper corrosion protection and finish to any exposed screw hole or area left over from the removal of existing hardware before installation of D&D Technologies' hardware.
    5. INSTALLATION
    6. Install each hardware items to comply with manufacturer’s installation instructions, building code requirements, and requirements of Authorities Having Jurisdiction.
    7. Install hardware types and quantities indicated on submitted hardware schedule.
    8. Do not install surface-mounted hardware until substrate finishes have been completed.
    9. Set all gates, fence posts and gate hardware level, plumb and true to line and location. Adjust and reinforce attachments where necessary for proper installation and operation.
    10. Make final installation inspection with Owner and make final adjustments prior to acceptance.

END OF SECTION

Specifier Note: Select Section Numbers from options below. Change footer to match.

SECTION 087120 [323120] GATE HINGES (Shortform Version)

• GENERAL
  • SUMMARY
    1. Section Includes: D&D Technologies Gate Hinges.
       1. TruClose Products:
          1. TruClose Series 3 Regular Hinges.
          2. TruClose Regular Mini MultiAdjust (Square and Round Post options available).
          3. TruClose Regular DecoMold.
          4. TruClose Series 3 Heavy Duty Hinges.
          5. TruClose Series 3 Heavy Duty Round
          6. TruClose Heavy Duty MultiAdjust.

2. KwikFit Products:
   1. KwikFit Aluminum.
   2. KwikFit Series 3 Polymer (Self-Closing and Plain Pivoting).

• SUBMITTALS
  1. Product Data.
  2. Hardware Schedule.
  3. Installation Instructions.
  4. Warranty: Limited Lifetime Warranty (TruClose products and KwikFit Series 3 Polymer products only). Two Year Limited Warranty on KwikFit Aluminum.
  5. Extra Materials: At project closeout provide installation and adjustment instructions, warranties and advisories, extra parts, accessories, and tools normally provided by manufacturer with installed hardware for maintenance and adjustment of installed hardware.
  6. QUALITY ASSURANCE
  7. D&D Technologies operates a fully accredited and internationally recognized ISO 9001-2015 Quality Assurance System, which governs the design and manufacture of all our products.
• PRODUCTS
  • PRODUCTS
    1. Products: Subject to compliance with requirements, provide the following D&D Technologies gate hinge products. No substitutions.

Specifier Note: Select products from list below applicable to project.

1. TruClose Family of Products:

1. TruClose Series 3 Regular:

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

2. TruClose Regular Mini MultiAdjust:

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

3. TruClose Regular DecoMold:

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

4. TruClose Series 3 Heavy Duty:

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

5. TruClose Series 3 Heavy Duty Round

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

6. TruClose Heavy Duty MultiAdjust:

 Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=TruClose%C2%AE for free online videos and installation information.

1. KwikFit Family of Products:

1. KwikFit Aluminum:

Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=KwikFit%E2%84%A2 for free online videos and installation information.

2. KwikFit Series 3 Polymer:

 Visit https://us.ddtech.com/collections/gate-hinges?page=1&rb_vendor=KwikFit%E2%84%A2 for free online videos and installation information.

• EXECUTION
  • EXAMINATION
    1. Examine gate frames and fence posts, with Installer present, for compliance with requirements for gate hardware installation tolerances, assembly construction, and other conditions affecting performance.
    2. Proceed with installation only after unsatisfactory conditions have been corrected.
    3. PREPARATION
    4. Prepare gate frames and fence posts in accordance with manufacturer's installation instructions. Any existing gate hardware must be removed before installation. Apply the proper corrosion protection and finish to any exposed screw hole or area left over from the removal of existing hardware before installation of D&D Technologies' hardware.
    5. INSTALLATION
    6. Install each hardware items to comply with manufacturer’s installation instructions, building code requirements, and requirements of Authorities Having Jurisdiction.
    7. Install hardware types and quantities indicated on submitted hardware schedule.
    8. Do not install surface-mounted hardware until substrate finishes have been completed.
    9. Set all gates, fence posts and gate hardware level, plumb and true to line and location. Adjust and reinforce attachments where necessary for proper installation and operation.
    10. Make final installation inspection with Owner, and make final adjustments prior to acceptance.
